7.1 Test Configuration

7.1.1 No hop

7.1.1.1 M2M_CFG_01

The AE manages resources on the registrar CSE (Hosting CSE).

oneM2M entities model

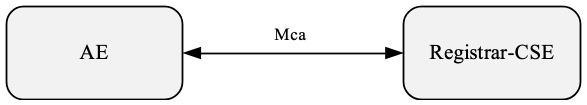

Figure 7.1.1.1-1

Figure 7.1.1.1-1

7.1.1.2 M2M_CFG_02

oneM2M entities model

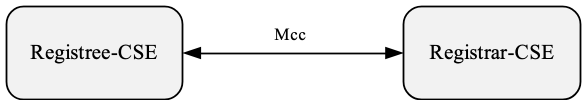

Figure 7.1.1.2-1

Figure 7.1.1.2-1

7.1.1.3 M2M_CFG_10

oneM2M entities model

Figure 7.1.1.3-1

Figure 7.1.1.3-1

Note

For HAIM Model tests, clause 8.5, AE1 represents a native oneM2M device that implements the HAIM models or a combined IPE(AE) plus a non-oneM2M device node (nodn).

7.1.2 Single hop

7.1.2.1 M2M_CFG_03

The AE manages resources on the remote CSE.

oneM2M entities model

Figure 7.1.2.1-1

Figure 7.1.2.1-1

7.1.2.2 M2M_CFG_04

oneM2M entities model

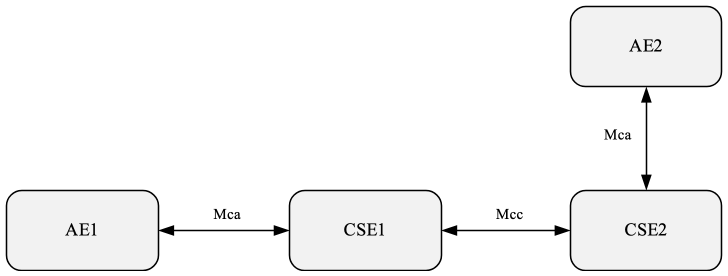

Figure 7.1.2.2-1

Figure 7.1.2.2-1

7.1.2.3 M2M_CFG_05

oneM2M entities model

Figure 7.1.2.3-1

Figure 7.1.2.3-1

7.1.2.4 M2M_CFG_08

This configuration concerns group management when the AE is using a group to fan out requests to multiple members. The connection between the AE and the Group Hosting CSE, the Group Hosting CSE and the Member Hosting CSE may be a multi hop connection following the definition in clause 7.1.3.

This configuration is mapped to cases including:

AE sends a request addressing <group>/fanOutPoint in the Group Hosting CSE, the Group Hosting CSE then further fans out the request to each Member Hosting CSE.
The Member Hosting CSE sends a notification to the Group Hosting CSE pertaining to the subscription made through the Group Hosting CSE. The Group Hosting CSE then further aggregates the notification and sends it back to the AE.

Figure 7.1.2.4-1

Figure 7.1.2.4-1

7.1.2.5 M2M_CFG_09

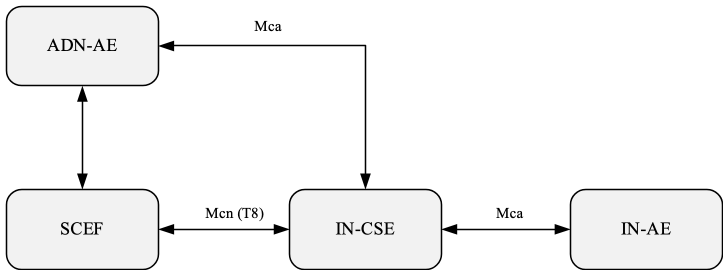

This configuration concerns device management using external technologies.

This configuration is mapped to cases including:

The AE sends a request addressing <mgmtObj> to IN-CSE. IN-CSE then further acts as a Management Server to send management commands to Managed Entity over the mc interface. The management command is defined in OMA DM, BBF TR069 or LWM2M.

Figure 7.1.2.5-1

Figure 7.1.2.5-1

7.1.2.6 M2M_CFG_11

This configuration concerns device management using 3GPP network.

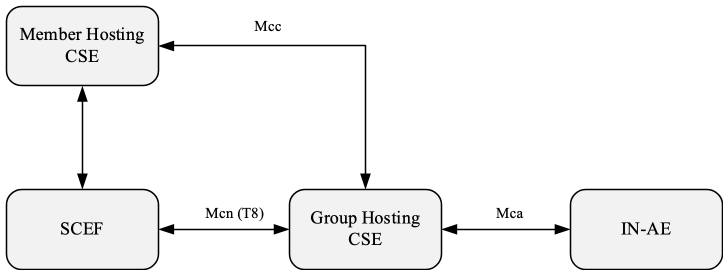

~~CAPTION~~

7.1.2.7 M2M_CFG_12

This configuration concerns group management when the IN-AE is using a group to fan out requests to multiple members in 3GPP interworking scenraios. The connection between the IN-AE and the Group Hosting CSE, the Group Hosting CSE and the Member Hosting CSE may be a multi hop connection following the definition in clause 7.1.3.

This configuration is mapped to cases including:

IN-AE sends a request addressing <group>/fanOutPoint in the Group Hosting CSE, the Group Hosting CSE then further fans out the request to each Member Hosting CSE through 3GPP network.

~~CAPTION~~

7.1.3 Multi hops

7.1.3.1 M2M_CFG_06

oneM2M entities model

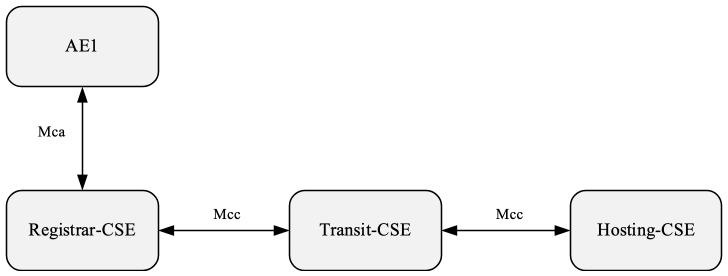

Figure 7.1.3.1-1

Figure 7.1.3.1-1

7.1.3.2 M2M_CFG_07

oneM2M entities model

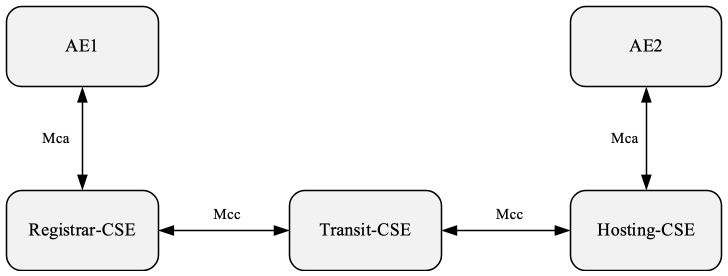

Figure 7.1.3.2-1

Figure 7.1.3.2-1
