5.1 Test Configurations

Test configurations are defined to test different entities such as CSE and AE etc.

Figure 5.1-1 and Figure 5.1-2 show CSE test configurations where CSE as a IUT can be tested against TTCN-3 Test System, which is acting as AE or AE and CSE respectively. Test system may include as well other entities which are necessary for each configuration, i.e. a second AE (AE2) for receiving notifications These entities are represented with dashed rectangles.

Figure 5.1-3 shows AE test configuration (CF03) for ADN-AE testing scenario where ADN-AE is IUT and TTCN-3 Test System is acting as a CSE.

Figure 5.1-4 depicts test configurations between two CSEs, where one CSE is acting as a Test System, the other is SUT.

Figure 5.1-5 shows test configurations for 3GPP interworking testing scenario where 3GPP SCEF is working in a Test System.

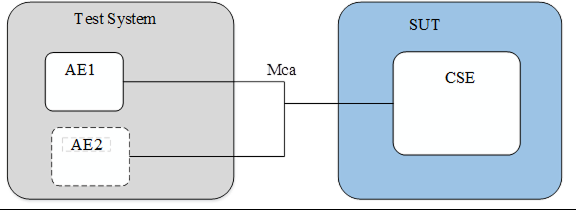

Figure 5.1-1: Test configuration 1 (CF01)

Figure 5.1-1: Test configuration 1 (CF01)

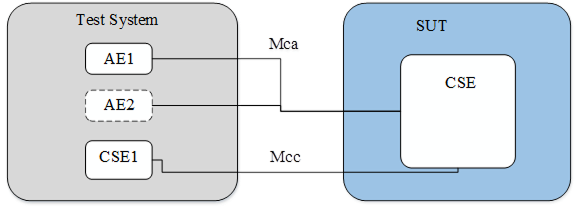

Figure 5.1-2: Test configuration 2 (CF02)

Figure 5.1-2: Test configuration 2 (CF02)

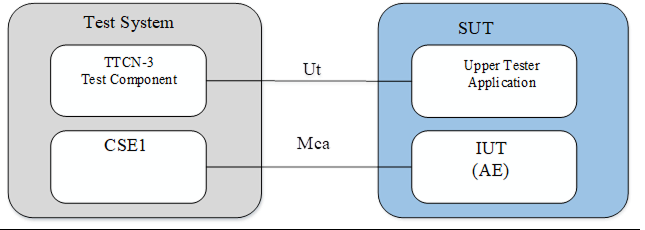

Figure 5.1-3: Test configuration 3 (CF03)

Figure 5.1-3: Test configuration 3 (CF03)

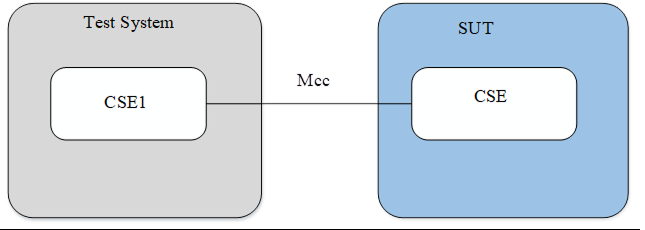

Figure 5.1-4: Test configuration 4 (CF04)

Figure 5.1-4: Test configuration 4 (CF04)

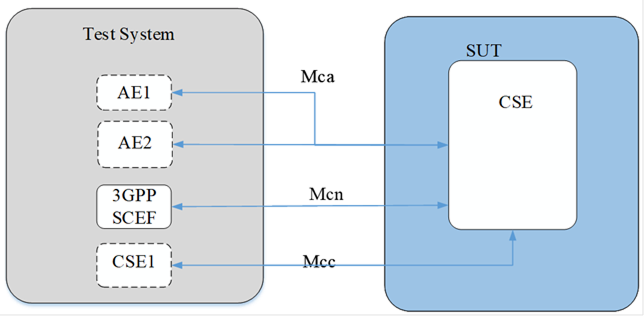

Figure 5.1-5 : Test configuration 5 (CF05)

Figure 5.1-5 : Test configuration 5 (CF05)

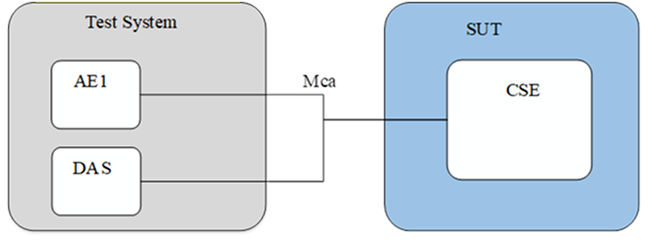

Figure 5.1-6: Test configuration 6 (CF06)

Figure 5.1-6: Test configuration 6 (CF06)

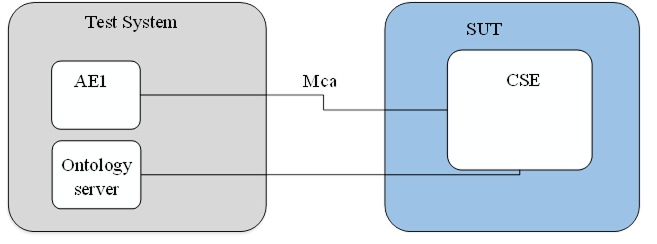

Figure 5.1-7 : Test configuration 7 (CF07)

Figure 5.1-7 : Test configuration 7 (CF07)
