5 Prerequisites and Test Configurations

5.1 Test Configurations

Test configurations are defined to test different entities such as CSE and AE etc.

Figure 5.1‑1 and Figure 5.1‑2 show CSE test configurations where CSE as a IUT can be tested against TTCN-3 Test System, which is acting as AE or AE and CSE respectively. Test system may include as well other entities which are necessary for each configuration, i.e. a second AE (AE2) for receiving notifications These entities are represented with dashed rectangles.

Figure 5.1‑3 shows AE test configuration (CF03) for ADN-AE testing scenario where ADN-AE is IUT and TTCN-3 Test System is acting as a CSE.

Figure 5.1‑4 depicts test configurations between two CSEs, where one CSE is acting as a Test System, the other is SUT.

Figure 5.1‑5 shows test configurations for 3GPP interworking testing scenario where 3GPP SCEF is working in a Test System.

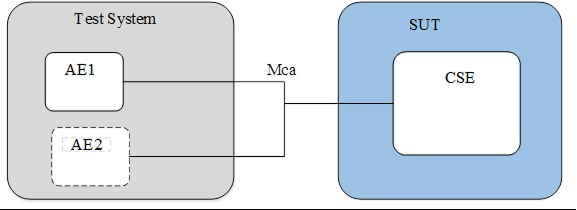

Figure 5.1-1: Test configuration 1 (CF01)
Figure 5.1‑1: Test configuration 1 (CF01)

Figure 5.1‑1: Test configuration 1 (CF01)

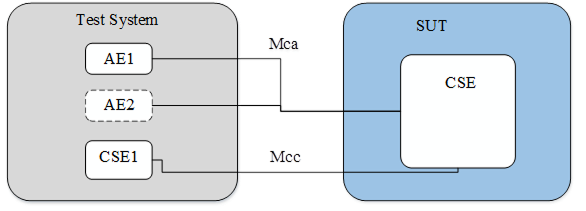

Figure 5.1-2: Test configuration 2 (CF02)
Figure 5.1‑2: Test configuration 2 (CF02)

Figure 5.1‑2: Test configuration 2 (CF02)

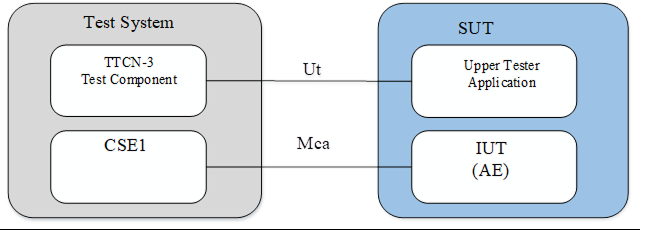

Figure 5.1-3: Test configuration 3 (CF03)
Figure 5.1‑3: Test configuration 3 (CF03)

Figure 5.1‑3: Test configuration 3 (CF03)

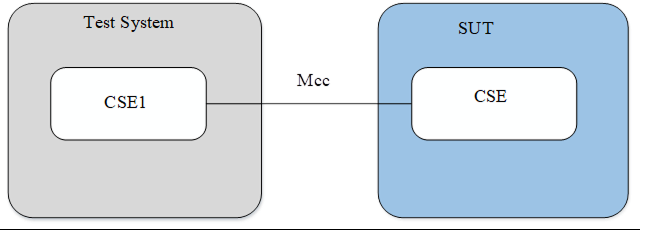

Figure 5.1-4: Test configuration 4 (CF04)
Figure 5.1‑4: Test configuration 4 (CF04)

Figure 5.1‑4: Test configuration 4 (CF04)

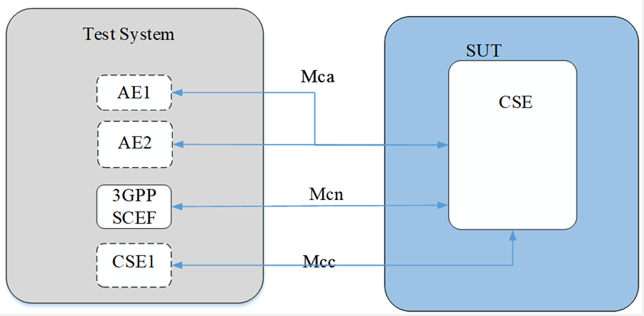

Figure 5.1-5 : Test configuration 5 (CF05)
Figure 5.1‑5 : Test configuration 5 (CF05)

Figure 5.1‑5 : Test configuration 5 (CF05)

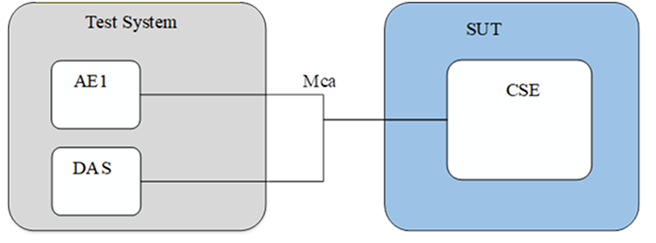

Figure 5.1-6: Test configuration 6 (CF06)
Figure 5.1‑6: Test configuration 6 (CF06)

Figure 5.1‑6: Test configuration 6 (CF06)

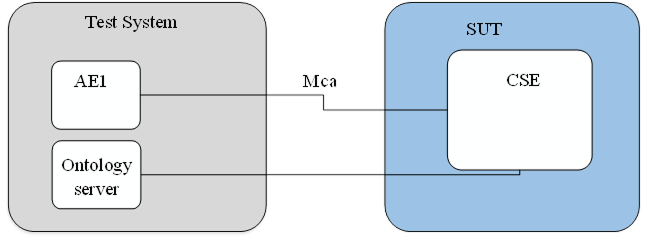

Figure 5.1-7 : Test configuration 7 (CF07)
Figure 5.1‑7 : Test configuration 7 (CF07)

Figure 5.1‑7 : Test configuration 7 (CF07)
