5.1 MAF Interface
5.1.1 Introduction
The MAF Interface is a simple variant of the Mcc/Mca reference points specifying the interaction of MAF Clients with an M2M Authentication Function (MAF), acting on behalf of an administrating stakeholder such as an M2M SP or third party M2M Trust Enabler (MTE). The present document does not specify the operation and management of the MAF required to support these procedures.
A MAF Client interacts with the MAF on behalf of a Node (ADN, ASN, IN or MN), or a CSE or an AE.

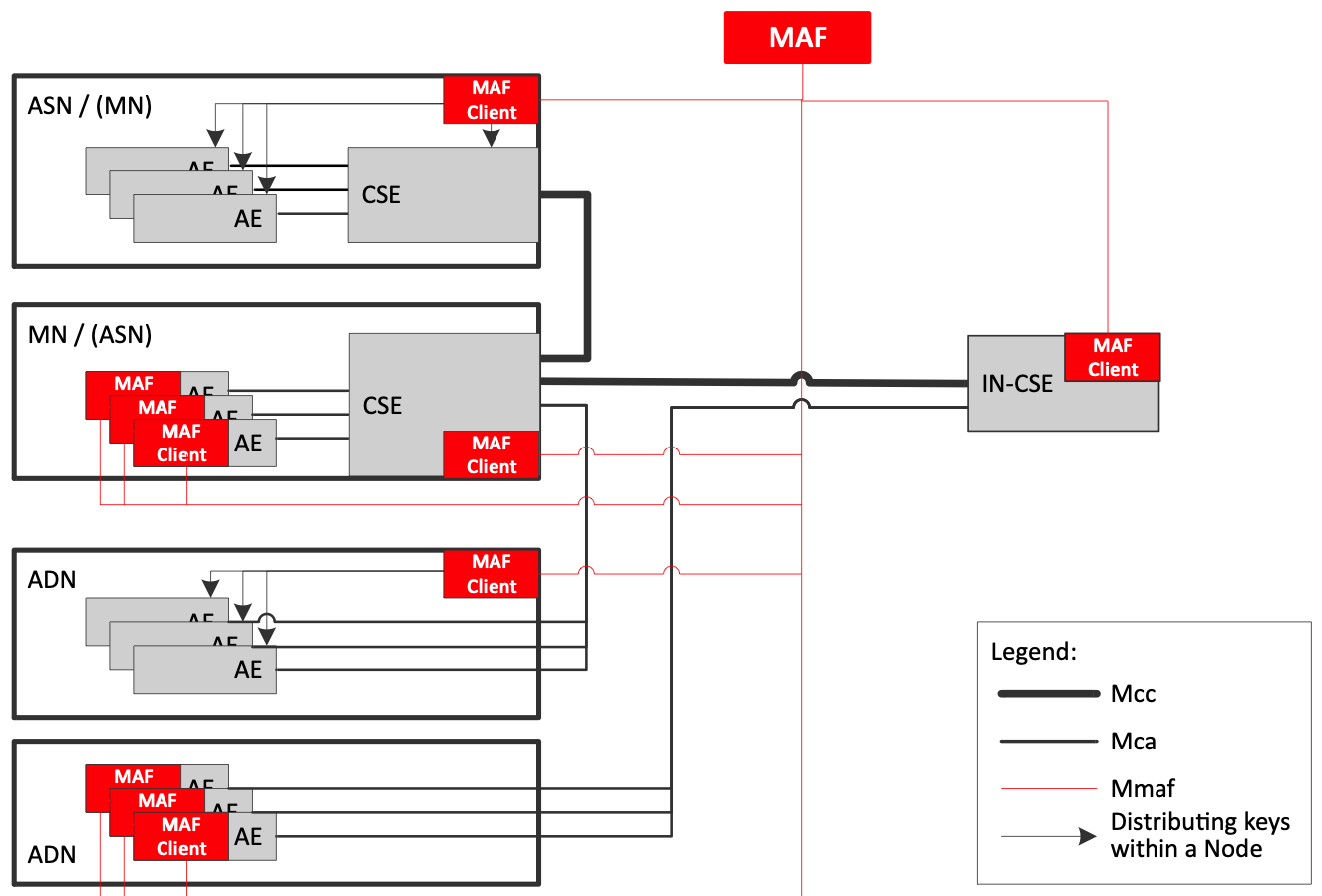

Figure 5.1.1-1 defines the reference point Mmaf between MAF clients and a MAF.
Figure 5.1.1-1: Reference Architecture for MAF
The administrating stakeholder authorizes the MAF's services to MAF clients, and oversees authorizing the distribution of symmetric keys. A MAF may provide its services on behalf of multiple administrating stakeholders. A MAF Client may be associated with multiple administrating stakeholders, each administrating the use of the MAF within a different scope.
Note
1: The administrating stakeholder could be an M2M SP administrating the registration and distribution of credentials used for SAEFs and ESPrim within the M2M SP's Domain.
Note
2: The administrating stakeholder could be an MTE administrating the registration and distribution of credentials for ESPrim and ESData to MAF Clients belonging to a particular Application Service Provider, where the MAF Clients could be distributed over multiple M2M SP domains.
The present document has no impact on the specifications in oneM2M TS-0001 [1] and oneM2M TS-0004 [3]. However, the MAF Interface uses much of the specification in oneM2M TS-0004 [3] and in particular allows use of the HTTP binding in oneM2M TS-0008 [4], the CoAP binding in oneM2M TS-0009 [5] and the WebSocket binding in oneM2M TS0020 [8].
Note
3: The MQTT binding in oneM2M TS-0010 [6] is not suitable for the MAF Interface, because the MAF Interface assumes a TLS or DTLS connection from the MAF Client to the MAF - which is not possible using the MQTT binding.
The MAF Interface incorporates the following concepts from the Mcc/Mca reference points:
- The concept of operations acting on resources.
- The resource addressing from Mcc/Mca is used.
- The universal attributes and some common attributes of resources.
The MAF Interface differs from Mcc/Mca in the following ways:
- The MAF Client can only communicate directly with the MAF - there are no transited CSEs. Only Blocking Mode communication method is supported.
- None of the resource types applicable on Mcc/Mca are used:
- Access control decisions use simple access control list for Retrieve access, and <accessControlPolicy> resources are not used for resources hosted by the MAF. A consequence of this is that the accessControlPolicyIDs attributes are not needed in the resources hosted by the MAF.
- The <subscription> resource and NOTIFY operations are not supported.
- There is no AE registration or CSE registration, but a similar process where a MAF Client creates a <mafClientReg> (MAF Client registration record) resource on the MAF.
- There are no announced resources.
The hierarchy of resources hosted by a MAF shall be as follows:
- <MAFBase> resource type is the structural root for all the resources that are residing on a MAF. This resource is implicitly created by the MAF and uses the fixed resource name "maf" and contains following child resources:
- <mafClientReg> resource. It confirms the MAF Client's registration to an administrating stakeholder, and can contain configuration information to be returned to the MAF Client.
- <symmKeyReg> resources. It is created by the MAF Client, and contains symmetric keys for retrieval by another MAF Client.
5.1.2 MAF Interface Overview
This MAF Interface overview is based on the specification in clause 6 of oneM2M TS-0004 [3].
Identifiers such as M2M-SP-ID, AE-ID and CSE-ID as defined in 6.2.3 of [3] also apply to the MAF Interface. M2M Trust Enablers (MTEs) are identified using an M2M-SP-ID.
Resources are addressed as specified in clause 6.2.4 in [3].
Common data types applicable to the MAF Interface are inherited from clause 6.3 of [3]. However, for any parameters or elements which have assigned the enumerated data type m2m:resourceType, the applicable enumeration values are interpreted as specified in Table 5.1.2-4. This applies to the Resource Type primitive parameter, the common resourceType attribute, and the @type attribute of m2m:childResourceRef.
Tables 5.1.2-1 and 5.1.2-2 list the request and response primitive parameters inherited from clauses 6.4.1 and 6.4.2 in [3], respectively; the data types of these parameters are unchanged. The From parameter shall include the MAF client ID which can be a Node-ID, AE-ID or CSE-ID, depending on whether the client acts on behalf of a node, AE or CSE. Note that this is in contrast to primitives on the Mca and Mcc interface, where the From primitive parameter cannot include a Node-ID.
Note
All other optional request and response primitive parameters defined in clause 6.4.1 of [3] are not used on the MAF Interface.
Table 5.1.2-1: MAF Interface request primitive parameters
| Parameter | Multiplicity | Notes |
|---|---|---|
| Operation | 1 | |
| To | 1 | |
| From | 0..1 | If not present, the MAF internally assigns From to be the identity of the Node, CSE or AE associated with the credential used for the MAF Handshake procedure. |
| Request Identifier | 1 | |
| Resource Type | 0..1 | values of m2m:resourceType interpreted as in Table 5.1.2-4 |
| Content | 0..1 | |
| Result Content | 0..1 |
Table 5.1.2-2: MAF Interface response primitive parameters
| Parameter | Multiplicity | Notes |
|---|---|---|
| Response Status Code | 1 | |
| Request Identifier | 1 | |
| Content | 0..1 |
Data types associated with resources applicable to the MAF Interface are defined in clause 7.
Table 5.1.2-3 lists the response status codes from clause 6.6 of [3] which are supported by the MAF Interface.
Table 5.1.2-3: Response status codes supported by the MAF Interface
| Response status codes | Interpretation |
|---|---|
| 2000 | OK |
| 2001 | CREATED |
| 2002 | DELETED |
| 2004 | UPDATED |
| 4000 | BAD_REQUEST |
| 4004 | NOT_FOUND |
| 4005 | OPERATION_NOT_ALLOWED |
| 4103 | ACCESS_DENIED |
| 5000 | INTERNAL_SERVER_ERROR |
Table 5.1.2-4: Interpretation of enumeration values of m2m:resourceType
| Value | Interpretation | Note |
|---|---|---|
| 1 | MAFBase | |
| 2 | MEFBase | |
| 3 | mafClientReg | |
| 4 | mefClientReg | |
| 5 | symmKeyReg | |
| 6 | mefClientCmd |
The MIME media types defined on clause 6.7 of [3] shall be supported on the MAF interface. The notification related Media types vnd.onem2m-ntfy+json, vnd.onem2m-ntfy+cbor, vnd.onem2m-ntfy+xml do not apply to the MAF interface.
Virtual resources (clause 6.8 of [3]) are not supported by the MAF Interface.
